CUSTOM GUIDE [for Pin Vise / Transparent]

Product Description:

Key Features:

• Free design capability – Create any perforation pattern you can imagine
• Transparent material – See-through design allows precise positioning on parts

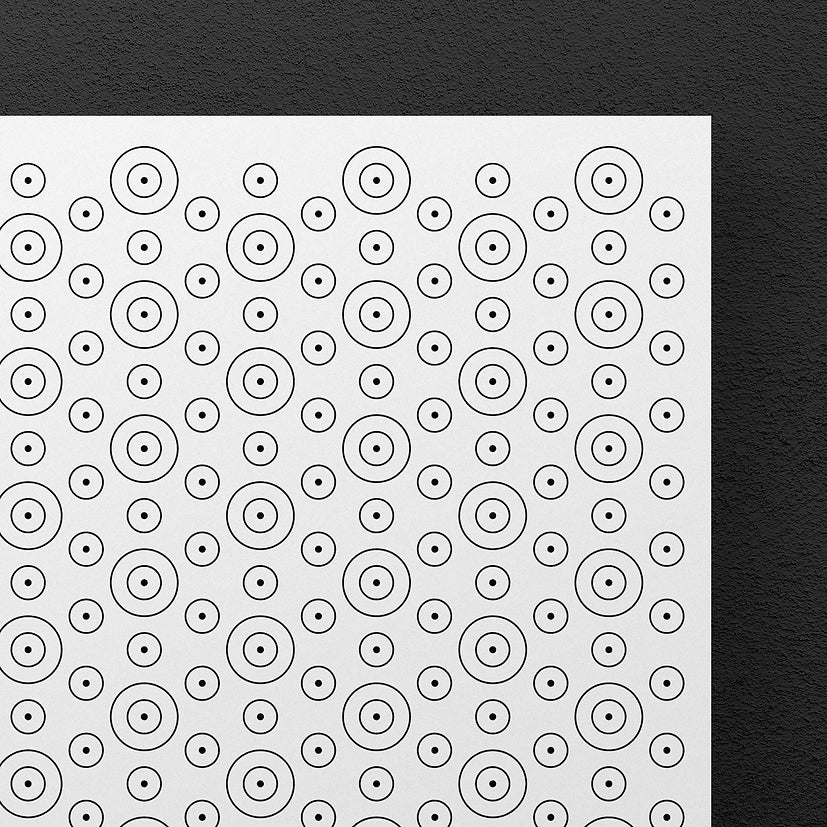

• Center point markings – Pre-marked drilling points for accurate pin vise placement
• Custom pattern creation – Draw your unique drilling design directly on the guide
• Precision spacing – Plan exact hole distances and arrangements
• Delicate work enabled – Perfect for intricate perforation projects

What's Included:

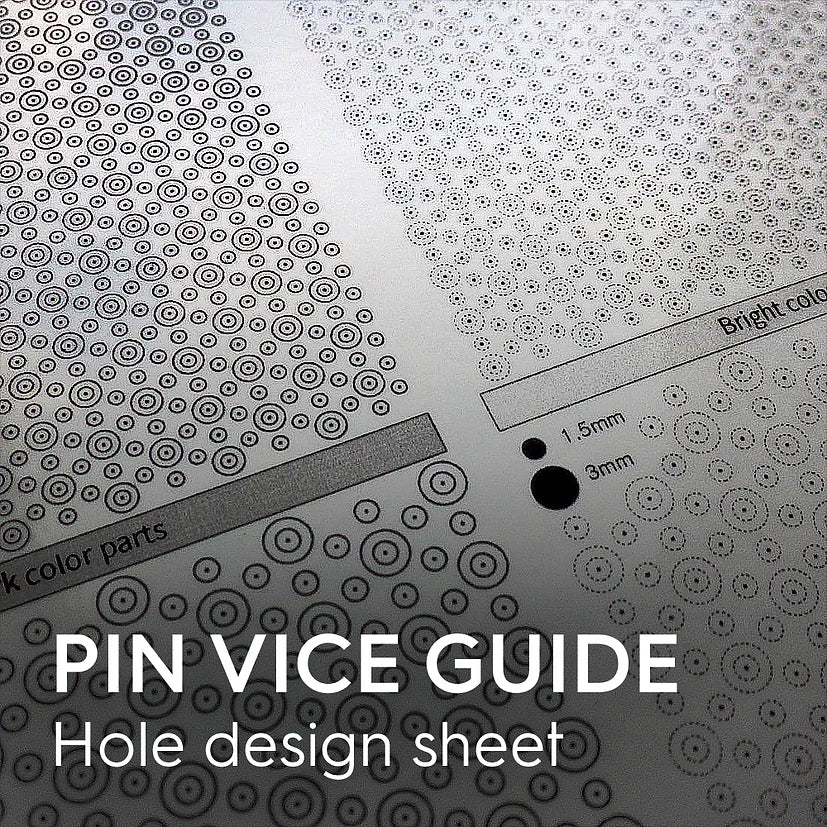

• 1 sheet of transparent Custom Guide for Pin Vise with center point markings
• Size: 105mm × 175mm

Specifications:

• Dimensions: 105 × 175mm
• Weight: 0.027 lb (approximately 12g)
• Components: 1 sheet per pack
• Material: Transparent adhesive guide sheet
• Application: Pin vise drilling / Perforation pattern design

How to Use:

1. Design Your Pattern: Freely design your perforation pattern on the guide sheet. Use a pencil (recommended) so the center points remain visible and not covered by ink
2. Check Distance: Verify spacing and measurements to ensure your pattern fits the part

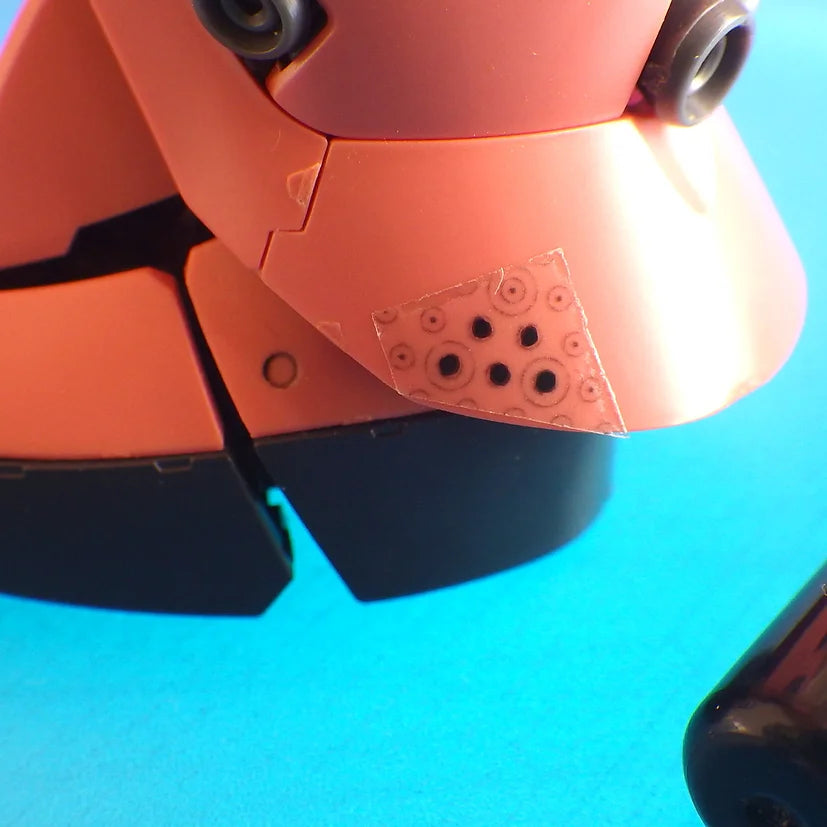

3. Attach to Part: Clean the surface and attach the guide to the desired location on your model part
4. Mark Center Points: Punch each center point with an awl to increase precision and create a starter dimple

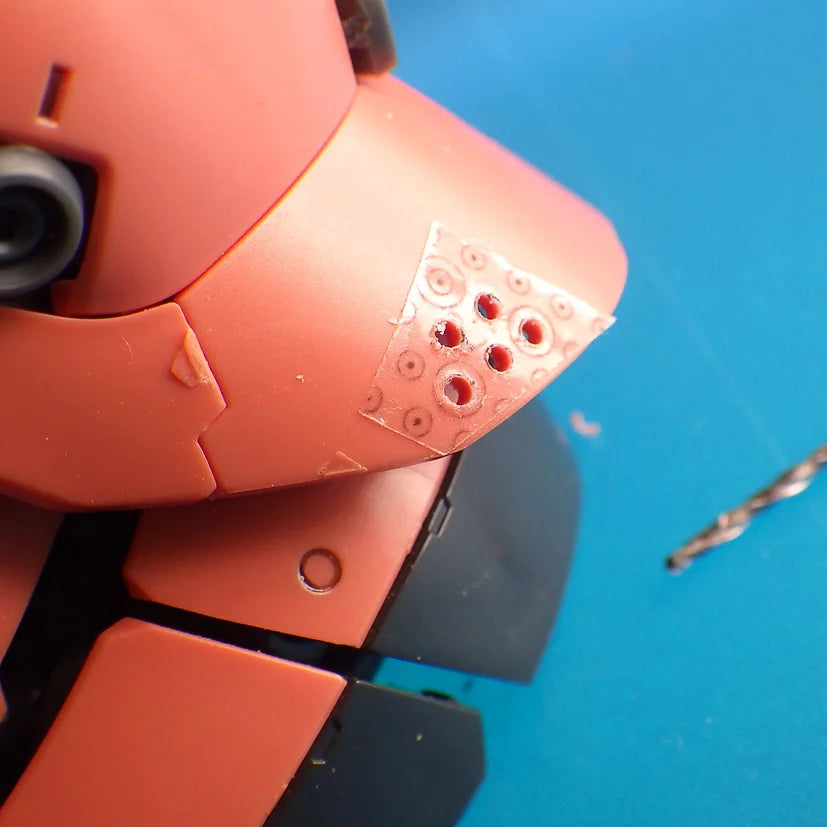

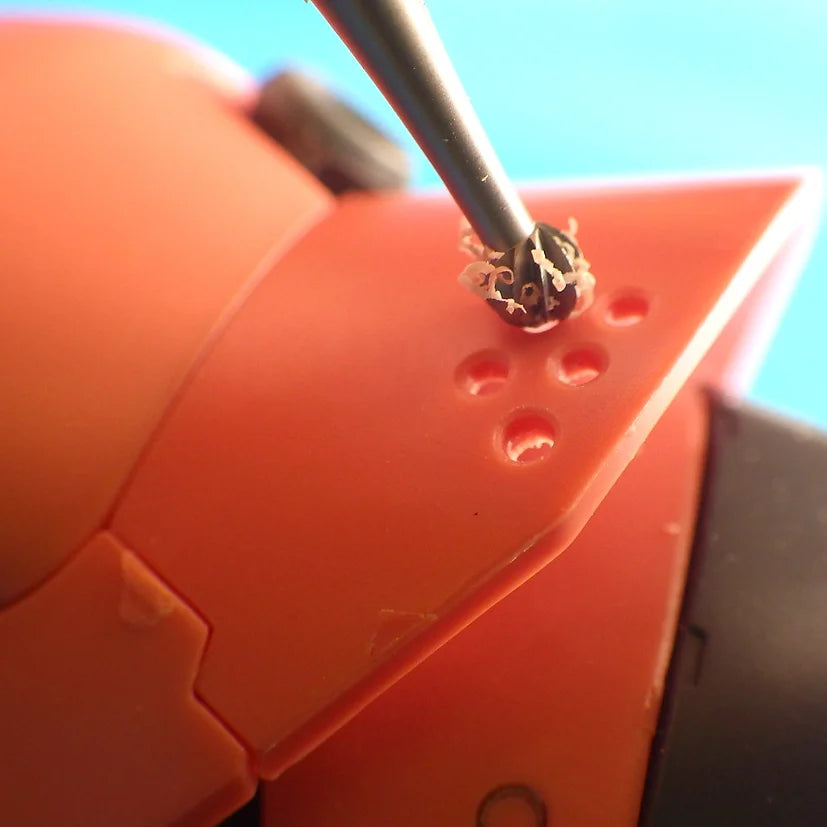

5. Drill with Pin Vise: Pierce each marked point with a pin vise of suitable drill bit size

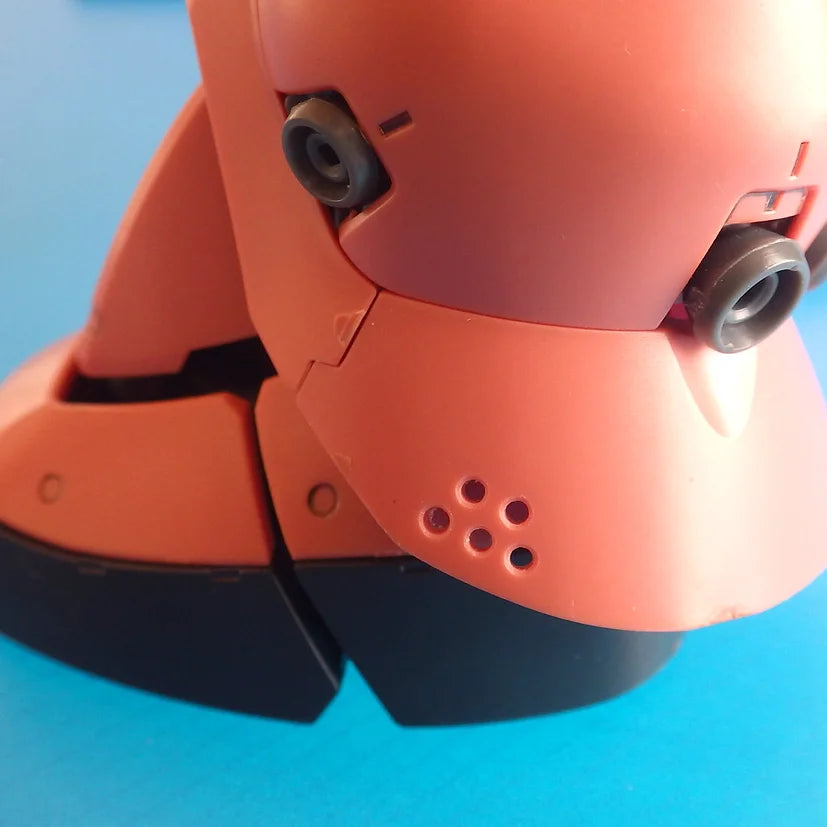

6. Remove Guide: Carefully remove the guide to reveal your custom perforation pattern

Important Note:

Perfect For:

• Custom venting patterns on Gundam armor
• Mechanical detail perforation work
• Thruster and exhaust port detailing
• Radiator grille patterns
• Sensor array drilling
• Custom cooling vent designs
• Detail-up drilling projects
• Competition-level customization
• Precise multi-hole patterns

Why Choose GUNPRIMER CUSTOM GUIDE [for Pin Vise]:

Design Applications:

• Vent Patterns: Create realistic cooling vents on chest armor, backpacks, and shields
• Thruster Details: Add authentic exhaust port patterns to thrusters and boosters
• Sensor Arrays: Design precise sensor hole patterns on head units and visors
• Mechanical Grilles: Create radiator-style perforation patterns
• Custom Detailing: Add unique perforation designs that set your builds apart
• Symmetrical Patterns: Design and execute perfectly symmetrical drilling on paired parts

Pro Tips:

1. Use Pencil: Always use pencil (not pen) when drawing patterns so center points remain visible
2. Awl First: Punch center points with an awl before drilling to prevent bit wandering
3. Right-Size Bit: Match your pin vise drill bit size to your design requirements
4. Test Pattern: Practice your pattern on scrap plastic before applying to final parts
5. Spacing Planning: Use graph paper to plan complex patterns before drawing on guide
6. Symmetry Tool: For paired parts, trace your first pattern to create a mirror template

Common Perforation Patterns:

• Linear Vents: Straight rows of evenly-spaced holes
• Honeycomb: Hexagonal hole arrangements for realistic grilles
• Circular Arrays: Holes arranged in circular patterns for thrusters
• Random Scatter: Organic, battle-damaged perforation effects
• Geometric Designs: Custom angular patterns for mechanical aesthetics

Recommended Tools to Use With:

• Pin vise hand drill
• Micro drill bits (0.3mm - 2.0mm)
• Scribing awl or center punch
• Mechanical pencil (0.3-0.5mm lead)
• Ruler or measuring tool

Skill Level:

Safety Reminder:
